Product descripation:
The WXC series of center-less lathe and JY series of straightening machines are high -level new equipment with independent intellectual property rights on the basis of absorbing and digesting foreign advanced technology, making adventurous innovation, and researchdevelopment take into consideration of actual situation of domestic companies. Our technology reaches the domestic advanced level in reliability and quality while keeps a relatively lower price, with its efficiency more several times than the conventional process.
Our products are suitable to process different kinds of metal material, for instance, black metal material such as structural steel, alloy steel, spring steel, bearing steel,tool steel, copper and copper alloy, aluminum and aluminum alloy, magnesium alloy, titanium and titanium alloy and other non-ferrous metal materials.
WXC seriyali markazsiz tokarlik stanoklari yuqori samarali ixtisoslashtirilgan stanok bo'lib, ingichka mil va boshqa novdalar kabi novda materiallari yuzasiga qo'pol yoki nozik ishlov berish uchun mo'ljallangan. U nafaqat novda yuzasidagi nuqsonlarni,-karburizatsiyalangan qatlamni, yoriqlarni va hokazolarni yo'q qilishga, balki nisbatan yuqori aniqlikni kafolatlashga ham qodir. Bu, ayniqsa, katta ishlov berish imkoniyati bilan qo'shimcha uzun bar va barni qayta ishlash uchun javob beradi.
2. Asosiy parametrlar:
ØIII) spetsifikatsiya tarkibi
Jihozning texnik tavsiflari va jihozlarning tarkibi
1. Xom ashyo:
1.1 Materiallar: titanium qotishmasi, zanglamaydigan po'lat, podshipnik po'lati, prujinali po'lat, qotishma asbob po'lati, uglerodli po'lat, yuqori{2}}tezkor po'lat, uglerodli po'lat, qotishma po'lat, so'nmagan va temperaturali po'lat, erkin kesuvchi po'lat, valf po'lat, tishli po'lat, qolip po'lat va-rangli metall, quvurlar.
1.2:Yuklash Og'irligi: 10000kg
Xom ashyoning spetsifikatsiyasi:
1.3:Diameter range: Φ86-Φ205mm
1.4:Diameter deviation: GB702-86 group2 standard
To'g'rilik: 1.5‰
Length range:4.5M-6M（Qisqa uzunlik tufayli 3-5 m novdalar har biri tomonidan qayta ishlanishi kerak)
2. Tayyor mahsulotlar:
2.1 Diameter range: Φ85-Φ200mm
2.2 O'lchov aniqligi h9 dan kam yoki unga teng
2.3 Roughness Ra Less than or equal to 3.2μm
3.Asosiy texnik parametr
3.1:Kesish chuqurligi: {0}}.35-5.0mm (bir tomonlama)
3.2:Cutter head speed(Variable frequency speed control):70-500r/min
3.3:Oziqlantirish tezligi (CVT): {0}}.2-4,0m/min (Katta va kichik diametrli, uzluksiz chip, chuqur kesish, yuqori quvvat, yuqori qattiqlik uchun tezlikni kamaytirish kerak.)
3.4:Asosiy dvigatel quvvati: 200 kVt
3.5:Dvigatel quvvati: 11 kVt
3.6:Dvigatel quvvatini sozlash vositasi: 5 kVt
3.7:Chiqaruvchi vosita quvvati: 1,1 kVt
4. Energiya resurslari muhiti parametri
4.1:Kuchlanishi:3X380V±10 percent
4.2:Frequency:50HZ±2 percent
4.3:Umumiy quvvat: 255 kVt
4.4:Pneumatic flow:0.5m³/min
4.5:Sovutish suvi oqimi: 170 l/min
5.Uskunalar tarkibi
5.1:Yuklash rafi: bitta to'plam
5.2:Stol rolikini yuklash: bitta to'plam
5.3:Asosiy mashina: bitta to'plam
⑴ Feeding device:one set
⑵ Front guide device:one set
⑶ Main spindle device:one set
⑷ Middle-rear guide device:one set
⑸ Clamping carriage device:one set
(6) Chiqaruvchi qurilma: bitta to'plam
5.4: Yukni tushirish rolikli stol: bitta to'plam
Yuk tushirish rafi: bitta to'plam
6. Jarayon tavsifi
6.1:sifatida qayta ishlanmoqdaLoading rack→Hydraulic automatic kicking arm→ loading roller table → feeding device → front guide device→main spindle device →middle-rear guide device →clamping carriage device→draw-out(extracting) device→unloading roller table → Hydraulic automatic kicking arm→unloading rack.

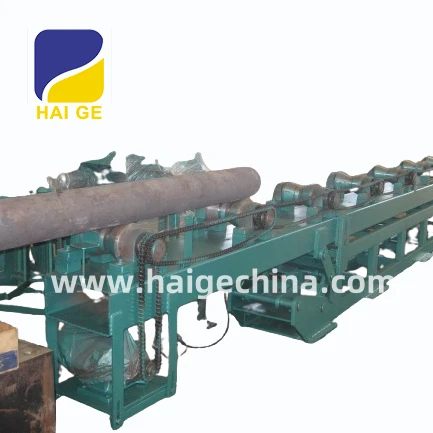

7. Uskunaning rasmi:
8. Qadoqlash va yetkazib berish:
Biz transport qadoqlarini eksport qilishda katta tajribaga egamiz. Ko'p himoya choralarini ko'rish:
9. kompaniya profili:
Yantai Haige International Trading Co.,Ltd.,is a joint-stock enterprise engaged in exporting products such as machines,pumps and parts etc. produced in China to the markets abroad,which is located in Laishan district,Yantai City,Shandong Province,China. Our company is based on the manufacturing plant-Yantai Haige machine tools Co.,Ltd and Yantai Hangjian Refined Special Steel Equipment Co.,Ltd. which focus on manufacturing many kinds of metal finishing equipment. Area of the factory is about 10000 square meter. There are one hundred and sixty staffs working in the factory,includes 14 staffs focusing on RD.
We have exported various products which mostly are machines and machine parts to many countries.We can provide timely oversea service. We are the exclusive agent of Yantai Volm Vacuum Technology Co.,Ltd.,which focus on manufacturing various of vacuum pumps,we represent their business in international markets.Also we are appointed to be the sole sales agent of Shandong Gexin machinery manufacturing Co.,Ltd. for their Rotational Moulding products and machine. We focus on the the quality of the products we sell,We welcome you to our plant and hope to have the pleasure of providing you the perfect products and best services.
10. Mijoz tashrifi:
11. Ko'rgazma:
12. Sertifikat:
13. mijozlarga xizmat ko'rsatish:
112 oylik bepul sifat kafolati muddati, eskirgan qismlardan tashqari.
5. Bizning muhandislarimiz xorijda xizmat ko'rsatishni taklif qilishlari mumkin, agar mijozimiz kerak bo'lsa, o'rnatish, ishga tushirish, o'qitish va hokazolarni o'z ichiga oladi.
14. Tez-tez so'raladigan savollar:
1. When is the delivery time? Delivery will occur between 15 and 20 days from order date. Faster delivery time can be arranged if needed.2. Do you have any MOQ limit? Yes it depends on the products' size and production process.3. What's your payment method? Paypal, T/T, L/C, Western Unions, are available.
