Product descripation:
1. Mashinaga kirish

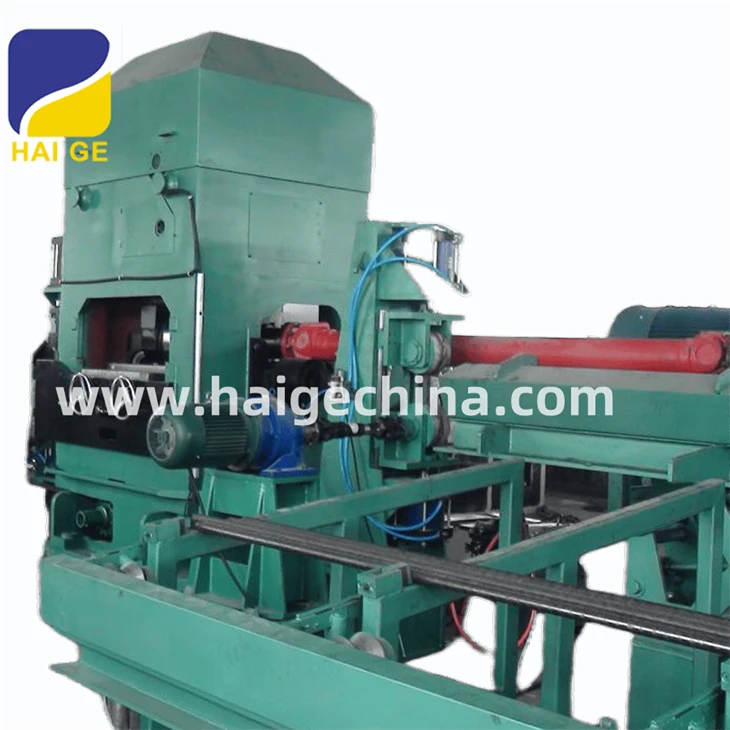

JY seriyali tekislash va kalendrlash mashinasi yuqori konkav va pastki konveks rolik o'rtasida maxsus egri chiziqni qabul qildi, texnologiya ishonchlilik va sifat jihatidan mahalliy ilg'or darajaga etadi va uning samaradorligi an'anaviy jarayondan bir necha barobar ko'pdir.Ishonchli ishlash, yuqori sifat va past narx.
Mahsulotlar har xil turdagi metall materiallarni, masalan, konstruktiv po'lat, qotishma po'lat, bahor po'lati, podshipnik po'lati, asbob po'lati kabi qora materiallarni qayta ishlash uchun javob beradi; mis va mis qotishmasi, alyuminiy va alyuminiy qotishmasi, magniy qotishmasi, titan va titanium qotishmasi va boshqa metall materiallar kabi-rangli metallar.
Mashina, asosan, tozalash yoki silliqlashdan keyin metall barni aniq tekislash va kalendarlash uchun ishlatiladi. Bundan tashqari, mashina qora chiziqni to'g'rilash va nozik zarb qilingan dumaloq barni to'g'rilash uchun ishlatiladigan gidravlik himoya moslamasi bilan ham jihozlanishi mumkin. Chunki uni kalendarlash va tekislash bir vaqtning o'zida yakunlanadi, shuning uchun ish samaradorligi yuqori.
2. Asosiy parametrlar:
2. Asosiy texnik parametrlar
JY60AY | |||
Kirish paneli | Dia diapazoni（mm）（tortilmagan xomashyo） | Φ20d dan kichik yoki teng. Kichik yoki tengΦ80（L 2000 dan katta yoki unga teng） | |
Mustahkamlik chegarasiσbdan kichik yoki teng1000（Mpa） | Φ20d dan kichik yoki teng. Kichik yoki tengΦ75（L 2000 dan katta yoki unga teng） | ||
Yuzaki qattiqlik | dan kichik yoki tengHB320 (HRC42 dan kam yoki unga teng) | ||
to'g'rilik（mm/m） | Yorqin bar:3 dan kichik yoki teng | ||
Dia bardoshlik（mm） | Yorqin bar:IT10 dan kam yoki unga teng | ||
dumaloqlik | d 50 dan kam yoki teng: Diametr tolerantligining 50 foizidan kam yoki unga teng 50＜d Less than or equal to 80: Less than or equal to 65 percent of diameter tolerance d＞80: Less than or equal to 70 percent of diameter tolerance | ||
qo'pollik（Ra） | Yorqin bar:3.2 dan kam yoki unga teng-6.3μm | ||
Chiqish paneli | to'g'rilik（mm/m） | Yorqin bar:dan kichik yoki teng0.25（o'lchangan qiymat minus ovallik, ikkita uchi oralig'i bundan mustasno100 mm） | |
To'g'rilikni o'lchash | Platforma sezgich o'lchagichi | ||
Dia bardoshlik | Yorqin bardan kichik yoki tengIT10 | ||
qo'pollik（Ra） | Yorqin bar Less than or equal to 0.8μm | ||
Rulo miqdori | 2 | ||
Rulo diametri（mm） | Φ290 | ||
To'g'ri tezlik（CVT） | 525（m/min） | ||
Asosiy dvigatel quvvati（kVt） | 45X2 | ||
Dvigatel quvvatini ko'tarish（kVt） | 3 | ||
Hajmi（m）（Malumot） | |||
Og'irligi（t）（Malumot） | Asosiy mashina10.5 | ||
Umumiy quvvat（kVt）（Malumot） | 100 | ||
Siqilgan havo（Foydalanuvchi tayyor） | 0,50,8MPa,1.8m3/min,2-bosqichli neft-gaz seperatori bilan | ||
Eslatma:①Xom ashyoning qattiqligi bir xil bo'lishi kerak, bir xil novda materialida HB qattiqlik qiymatlari farqi bo'lishi kerak Less than or equal to ±10, (HRC qattiqlik qiymatlarining farqi Less than or equal to ±1) Kirish materialining to'g'riligi ushbu shartnomadagi talabga javob berishi kerak, aks holda avtomatik oziqlantirish amalga oshirilmaydi. To'g'rilashdan oldin har ikkala materialning uchlarini qiyshayish tavsiya etiladi. Material titanium qotishmasi bo'lsa, uni isitish bilan tekislash kerak. Bardoshlilik haddan tashqari ko'p va uzunligi bo'lgan bar qisqa yoki uzoqroq bo'lsa, uni qo'lda oziqlantirish kerak; Katta diametrli, yuqori quvvatli, yuqori qattiqlik va yomon tekislikka ega bo'lgan barlarni past tezlikda qayta ishlash kerak.
Eslatma②:Ikkala uchidan 260mm diapazoni, tayyor yorqin chiziqning tekisligi taxminan 0,6 mm/m. Diametrli bardoshlik ham aniq farqlanadi. Har bir uchida tolerantlikning o'zgaruvchanlik qiymati taxminan±0.3mm. Xuddi shu satrda qolgan qismning og'ishi:0.03 mm dan kam yoki unga teng agarΦ1530,Φ3050为0.04 mm dan kam yoki unga teng agarΦ3050;0.05 mm dan kam yoki unga teng agarΦ5060.
3. Mashinaning tarkibi va tavsifi
3.1. Tarkibi
Asosiy mashina 1o'rnatish
Yuk ko'taruvchi stend (stol) yoki o'tish joyi 1o'rnatish
Jadvalni tekislash (ixtiyoriy) 1 to'plam
Kanal yuklanmoqda 1o'rnatish
Kirish chimchilash qurilmasi 1o'rnatish
Chiqish chiqarish qurilmasi 1o'rnatish
tushirish kanali 1o'rnatish
Yig'ish moslamasi 1o'rnatish
Sovutish moylash tizimi 1o'rnatish
Elektrtizimi 1o'rnatish
4. Mahsulot namoyishi:
5. Qadoqlash va yetkazib berish:
Biz transport qadoqlarini eksport qilishda katta tajribaga egamiz. Ko'p himoya choralarini ko'rish:
6. kompaniya profili:
Yantai Haige International Trading Co.,Ltd.,is a joint-stock enterprise engaged in exporting products such as machines,pumps and parts etc. produced in China to the markets abroad,which is located in Laishan district,Yantai City,Shandong Province,China. Our company is based on the manufacturing plant-Yantai Haige machine tools Co.,Ltd and Yantai Hangjian Refined Special Steel Equipment Co.,Ltd. which focus on manufacturing many kinds of metal finishing equipment. Area of the factory is about 10000 square meter. There are one hundred and sixty staffs working in the factory,includes 14 staffs focusing on RD.
We have exported various products which mostly are machines and machine parts to many countries.We can provide timely oversea service. We are the exclusive agent of Yantai Volm Vacuum Technology Co.,Ltd.,which focus on manufacturing various of vacuum pumps,we represent their business in international markets.Also we are appointed to be the sole sales agent of Shandong Gexin machinery manufacturing Co.,Ltd. for their Rotational Moulding products and machine. We focus on the the quality of the products we sell,We welcome you to our plant and hope to have the pleasure of providing you the perfect products and best services.
7. Mijoz tashrifi:
8. Ko'rgazma:
9. Sertifikat:
10. mijozlarga xizmat ko'rsatish:
112 oylik bepul sifat kafolati muddati, eskirgan qismlardan tashqari.
5. Bizning muhandislarimiz xorijda xizmat ko'rsatishni taklif qilishlari mumkin, agar mijozimiz kerak bo'lsa, o'rnatish, ishga tushirish, o'qitish va hokazolarni o'z ichiga oladi.
